Product Name

Galvalume Steel Sheet

Thickness

0.12mm-6.00mm

Width

600mm-1500mm

Length

1m-12m, Support Customization

Standard

AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.

Thickness of Aluminum Zinc Coating

30-185g/m²

Content of Al-Zn Coating

 Al: 55%, Zn: 43.5%, Si: 1.5%

Al

Zn

Si

Fe

Cu

Cd

Pb

Sn

Ni

Close Cr

55-58

41-43

1.5-2

0.25

0.03

0.05

0.01

0.05

0.05

0.05

Grade

Yield Strength MPa≥

Tensile Strength MPa≥

Elongation A%≥

DX51D Z/ZM/AZ/AM

240-380

270-500

22

DX52D Z/ZM/AZ/AM

140-300

270-420

26

DX53D Z/ZM/AZ/AM

140-260

270-380

30

DX54D Z/ZM/AZ/AM

120-220

260-350

36

S220GD Z/ZM/AM

220

300

20

S250GD Z/ZM/AZ/AM

250

330

19

S280GD Z/ZM/AM

280

360

18

S300GD A/AM

300

380

18

S320GD Z/ZM/AM

320

390

17

S350GD Z/ZM/AZ/AM

350

420

16

S450GD A/AM

450

480

15

S550GD Z/ZM/AZ/AM

550

550

-

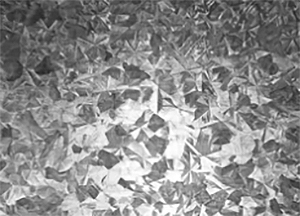

Zero Spangle

Minimized Spangle

Normal Spangle

Large Spangle

Type of Coating

Recommended Coating Weight

Aluminum-zinc Alloy

30/40/50/60/75/90/100/150

A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm

Project

Classification

Symbol

Type of Coating

Aluminum-zinc Alloy

AZ

Surface Finish

Conventional Sequins

R

Minimize Sequins

M

Skin Through

S

Surface Treatment

Chromate Passivation

c

Non-chromate Passivation

C5

Chromate Passivationoiling

CO

Chromium-free Passivationoiling

CO5

Anti-fingerprint

N

Chromate-free/Anti-fingerprint

N5

No chromate high weather resistance fingerprint

NW

Oil filling

0

No treatment

U

Chinese Standard

European Standards

American Standard

Japanese Standard

DC51D+AZ

DX51D+AZ

CS Type B, Type C

SGLCC

DC52D+AZ

DX52D+AZ

DS

SGLCD

S250GD+AZ

S250GD+AZ

255

-

S300GD+AZ

-

-

-

S350GD+AZ

S350GD+AZ

345

Class1 SGLC490

S550GD+AZ

S550GD+AZ

550

SGLC570
